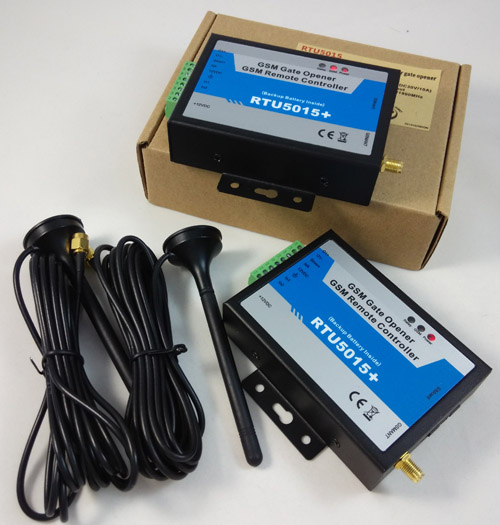

RTU5015+ Gsm gate opener ,Rechageable backup battery inside

The GSM Gate Opener RTU5015+ is Upgrated from RTU5015,bacup battery inside for power off alarm ,which can be used for authorized door access, controlling gates, switching of remote equipments, car parking systems. Actually the GSM Gate Opener RTU5015+ can be used in places which require to turn ON/OFF your system, machines, equipments remotely with a FREE call from your mobile phone.
Just dial from Authorized User number then the Barrier and doors are opened, or the machine are turn on or off by the GSM Gate Opener. There are no call costs, the GSM Gate Opener rejects the call from authorized number then carries out the turn ON/OFF action.

01

Description.
GSM Gate, Barrier, Shutter, Garage Door, Door Opener, Door access, Controlling gates, Car parking systems.

02

Simple GSM remote controller for industrial projects.
For water pump,water tank,motor remote control,solar power remote monitor.

03 GSM alarm system for home or industrial security alarm.
For home or industrial projects alarm,burgur alarm,battery operated gsm alarm box.
04 Rechargeable backup battery for power off alarm.
Upgraded from RTU5015 gsm gate opener and rechageable backup battery inside for power off alarm..

Quality Standards

Main features of RTU5015+:

1. No call charges. the GSM Gate Opener rejects the call from authorized number then carrys out the turn ON/OFF action on the first 'ring';
2. Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);
3. Secure - Using caller ID for identification,unknown callers are ignored;
4. Can be operated from anywhere, no distance limit;
5. Add or remove users by Simple SMS Text command;
6. Up to 99 authorized phone numbers can be configured;
7. Two Digital inputs for door sensor, motion sensors or other sensors to protect your door and windows, when any one of them triggered, will send SMS alert message you immediately;
8. One output with relay rating 3A/240VAC for connecting the switch of the door or machines;
9. The relay action will return a SMS confirmation to the owner, this function is editable by user;

Specifications of the RTU5015+:

DC Power supply:DC12V/2A
Power consumption:12V input (50mA)
Frequency range:Dual band 900/1800 MHz or 850/1900Mhz
SIM Card:Supporting 3V SIM Card
Antenna:50 Ω SMA Antenna interface
Temperature range:-20-+60 °C
Humidity range:Relative humidity 90% (condensation free)
Relay Rating:3A/240VAC
Exterior dimension:110mm*90mm*40mm
Net Weight:600 g

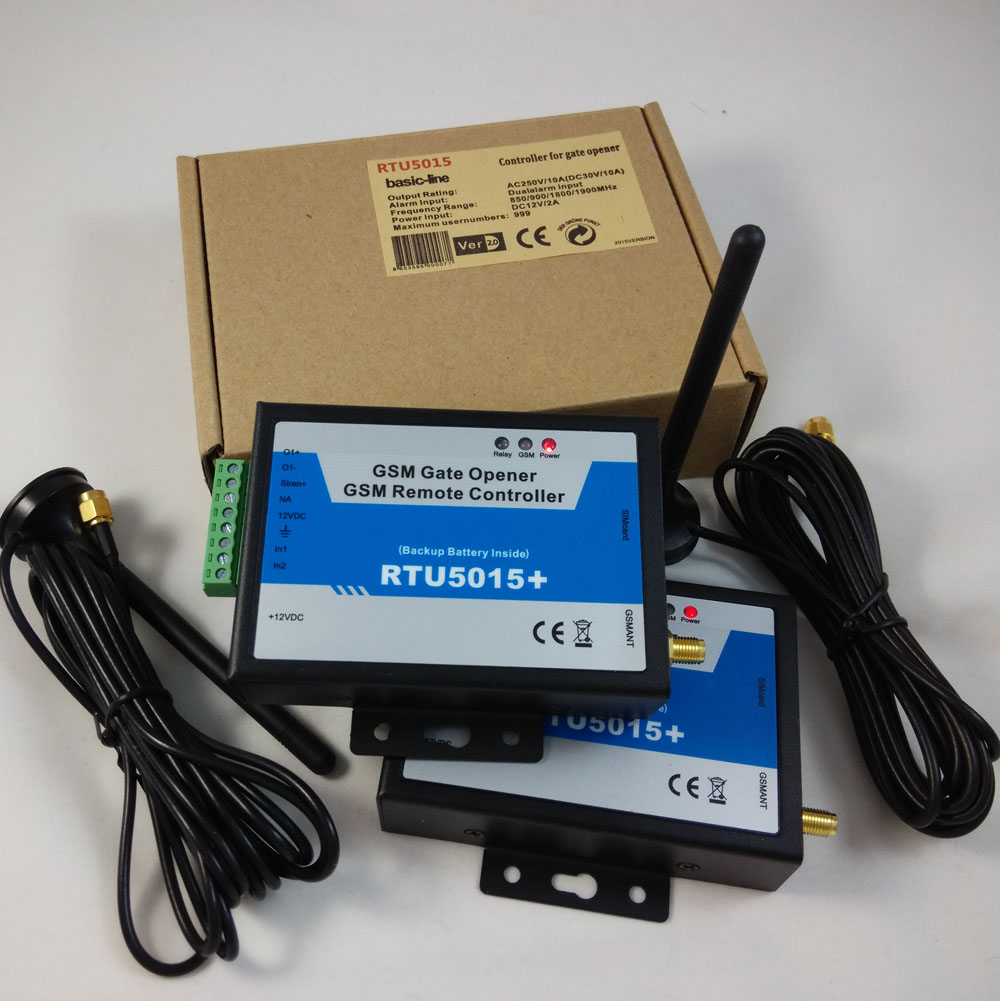

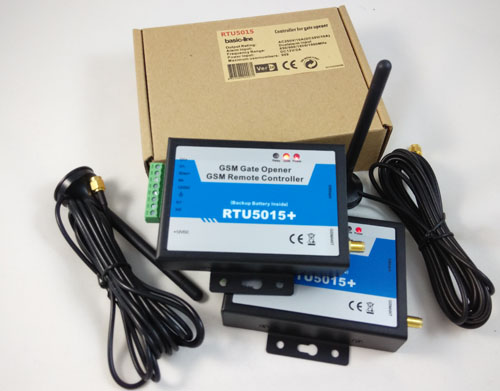

Standard Package list of RTU5015+:

GSM Gate Opener (RTU5015+) X 1
GSM Antenna X 1
AC to DC Adaptor X1 (12VDC/2A)
User Manual X 1
